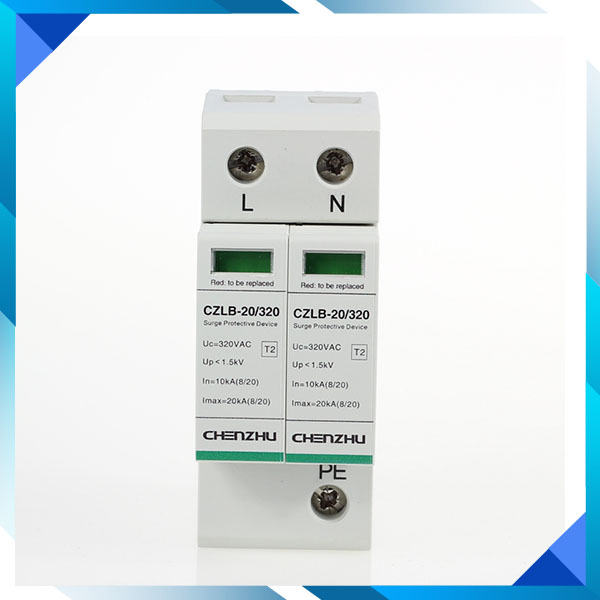

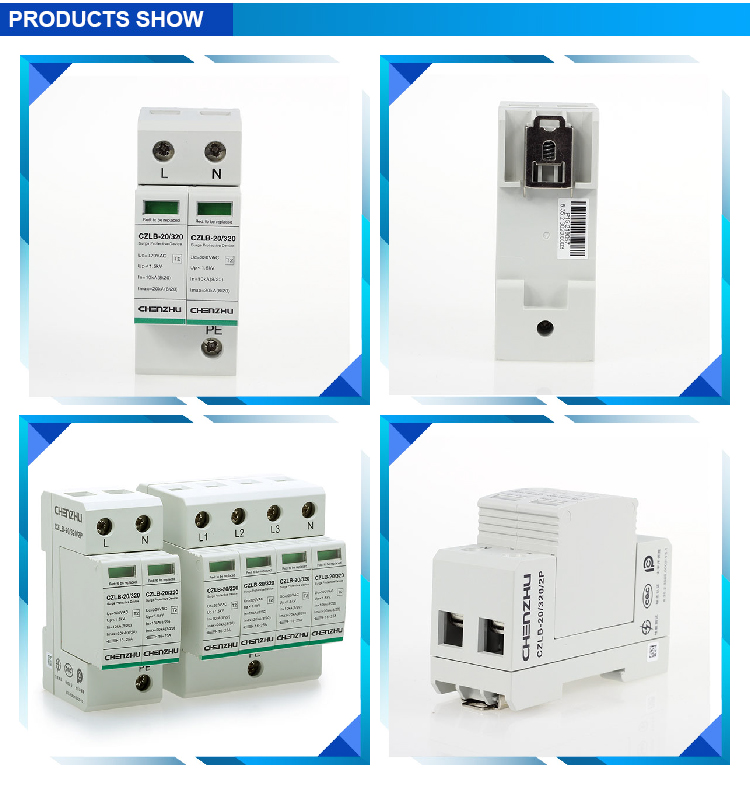

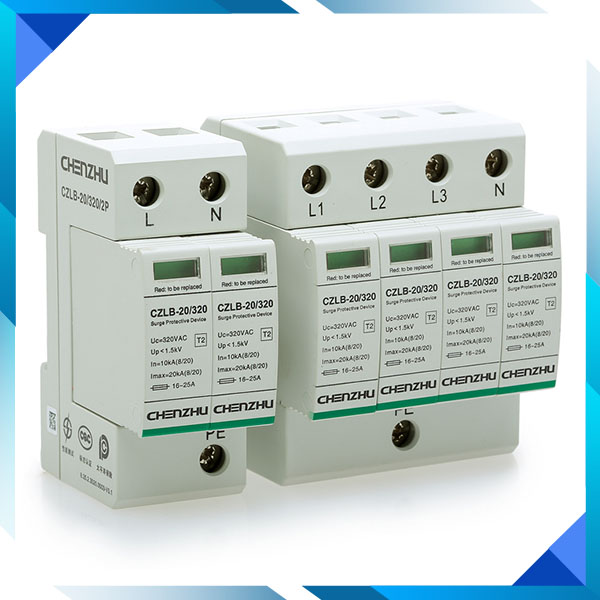

| Product Name | CZLB-20/320/2P Surge protective device |
Nominal operating voltage Un |
220VDC |
Maximun continuous operating voltage Uc |
320VDC |
Nominal Discharge Current In(8/20us) |
10kA |
Maximun Discharge Current Imax(8/20us) |
20kA |
Producted Objects/Systems |
Single-Phase Two-Wire;Single-Phase Three-Wire |
CZLB-20/320/2P，型式试验报告
CZLB-20/320/2P，CQC
| Features | 20kA;Single-Phase Two-Wire;Single-Phase Three-Wire |
| Protected Objects/Systems | Single-Phase Two-Wire;Single-Phase Three-Wire |

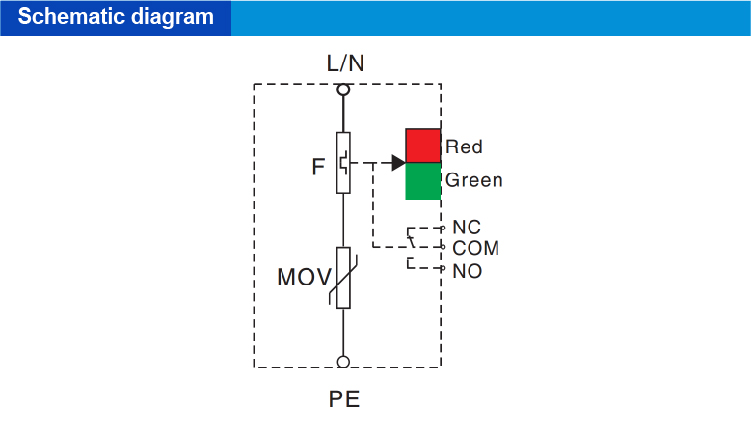

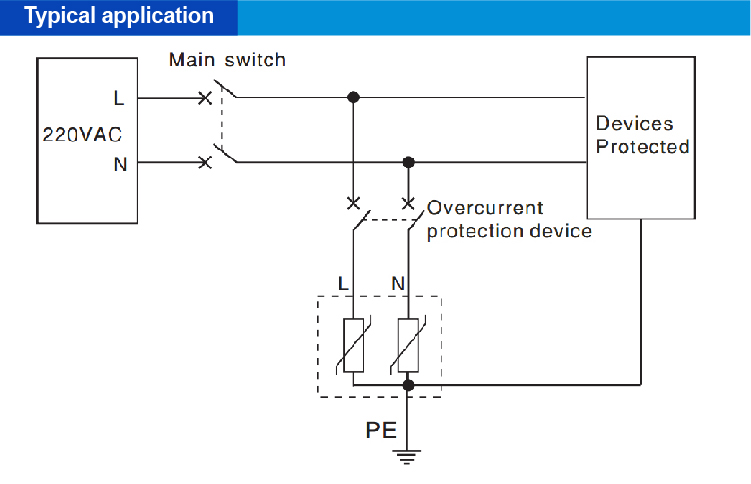

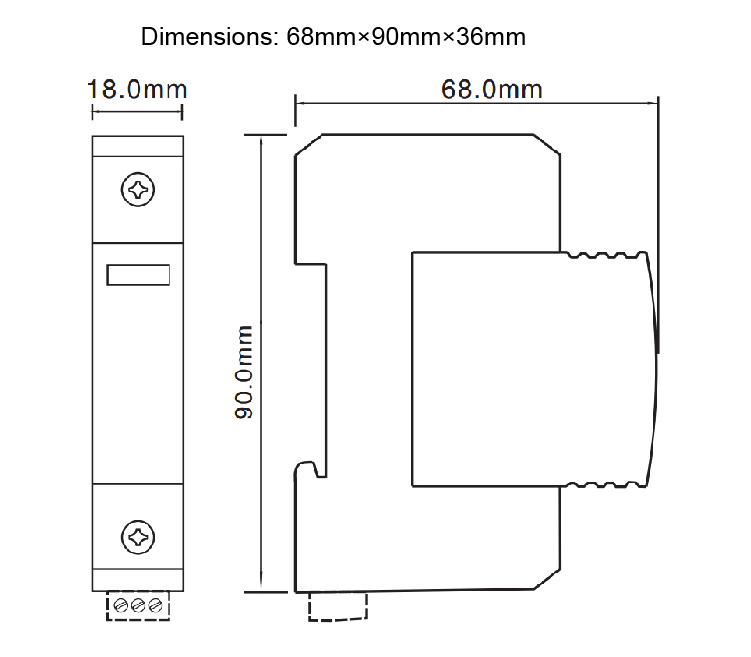

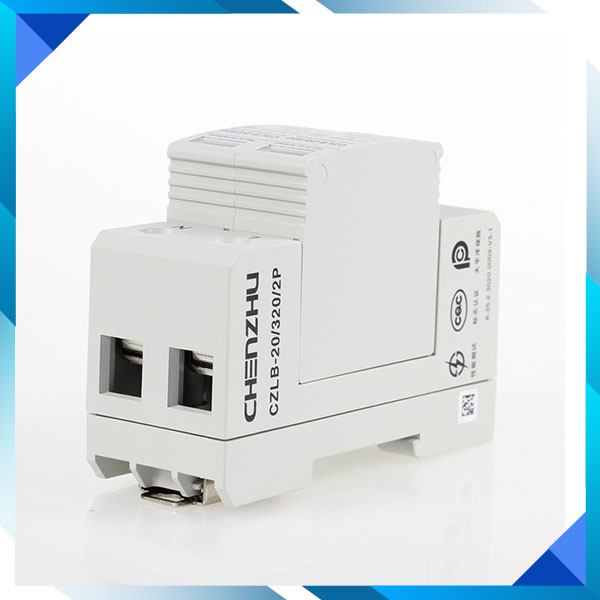

| Depth | 68.0mm |
| Height | 90.0mm |
| Width | 36.0mm |
| Material | PA66 |
| Protection Level | IP20 |
| Flame Retardant Grade | V0 |
| Colors | White Gray |
| Nominal operating voltage Un | 220VAC |
| Maximun continuous operating voltage Uc | 320VAC |
| Response Time | 25ns |
| Number of Wires | Single-Phase Two Line |
| Leakage Current | ＜10uA |
| Nominal Discharge Current In（8/20us) | 10kA |
| Maximum Discharge Current Imax（8/20us） | 20kA |
| Voltage Protection Level Up（8/20us) | 1.5kV |
| Certification | Lightning Protection Certification |
| Explosion-Proof Certification | N/A |
| Lightning Protection Certification | Shanghai Lightning Protection Products Test Center |
| Names | GB 18802.1 / IEC 61643-1 |
| Ambient Temperature (Operation) | ﹣40—70℃ |
| Ambient Temperature (Storage) | ﹣40—85℃ |
| Permissible Humidity (Operation) | 10%—90% |
| Applicable Location | Terminal Distribution Box |
| Maximum Altitude | 2000m |
| Conductor Cross Section Solid | 4—35mm2 |
| Conductor Cross Section Flexible | 4—35mm2 |
| Stripping Length | 12mm |
| Connection Method | Terminal Connection |
| Maximum Tightening Torque | 5Nm |
| Mounting Position | Distribution Box |
| Mounting Method | 35mm Lead Rail |
| Interface | Screws |
