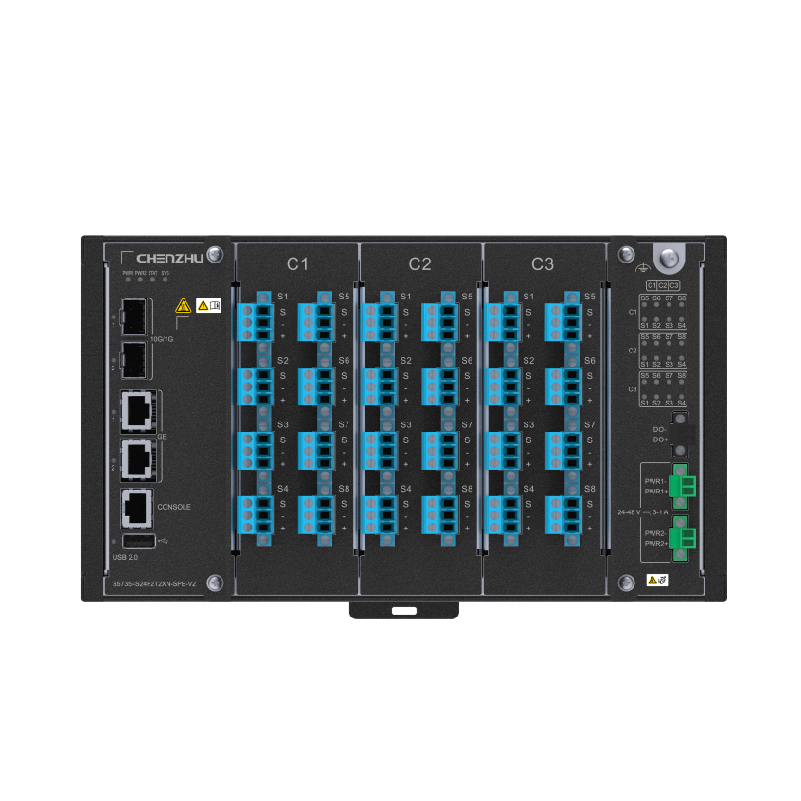

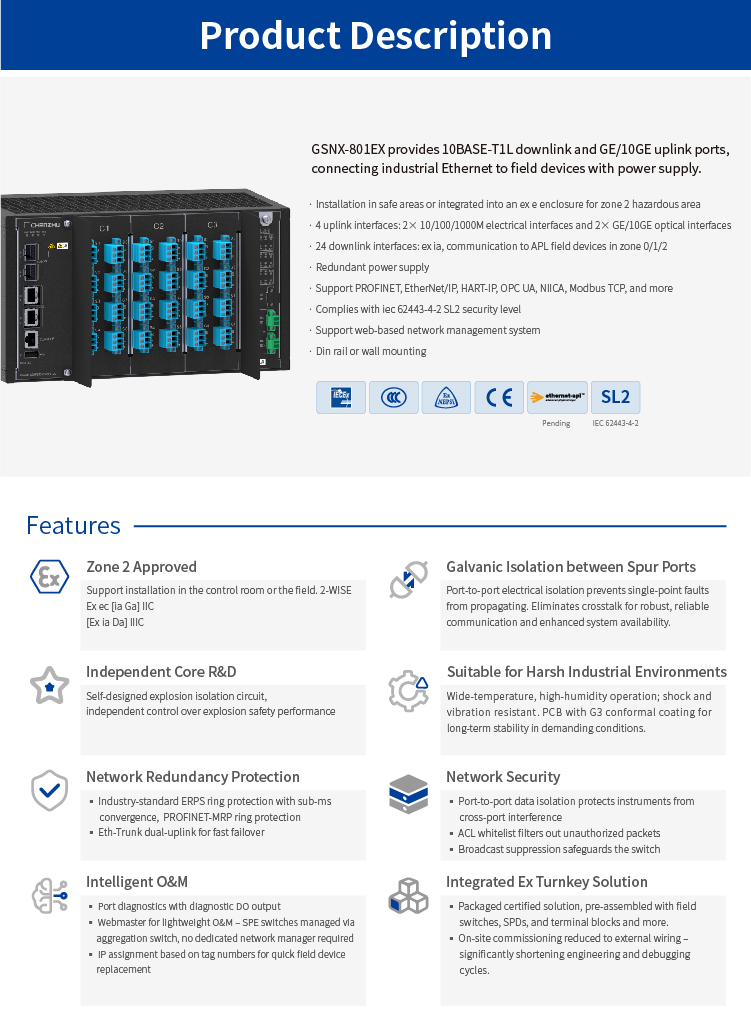

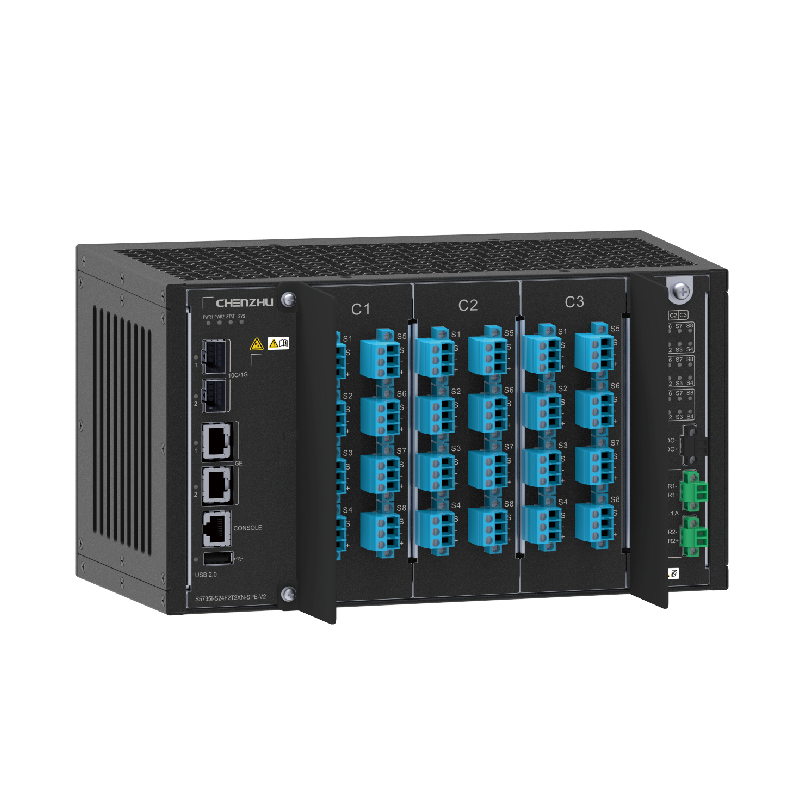

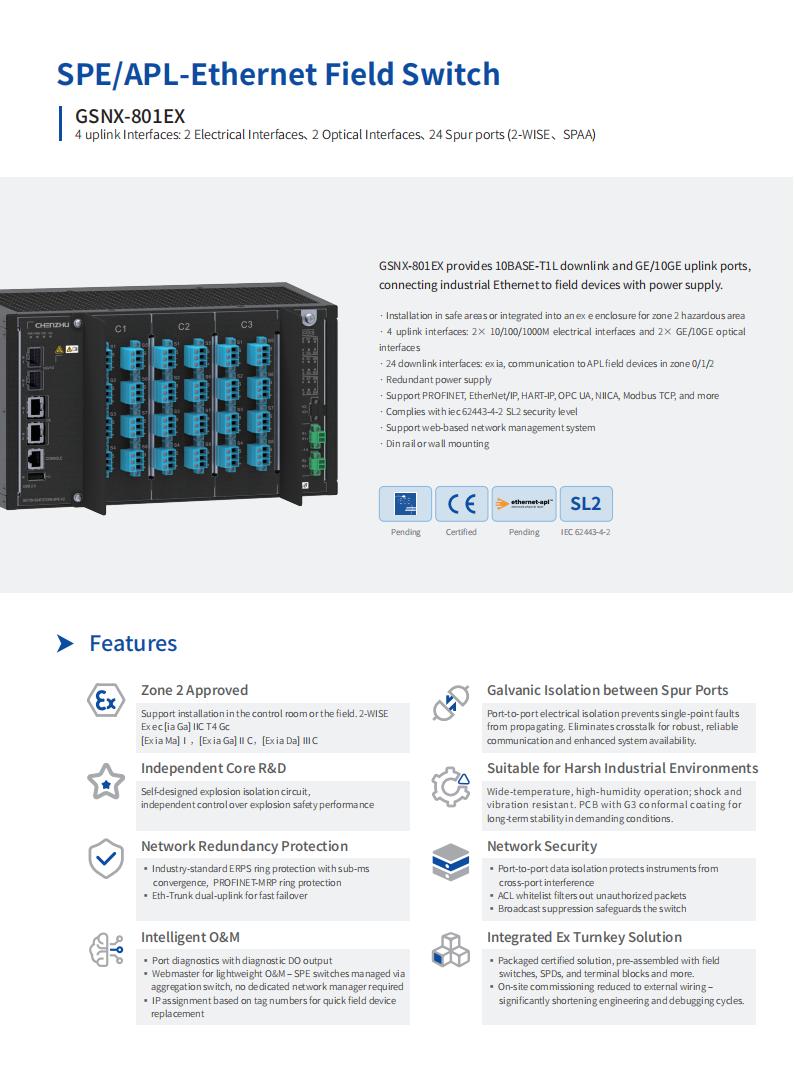

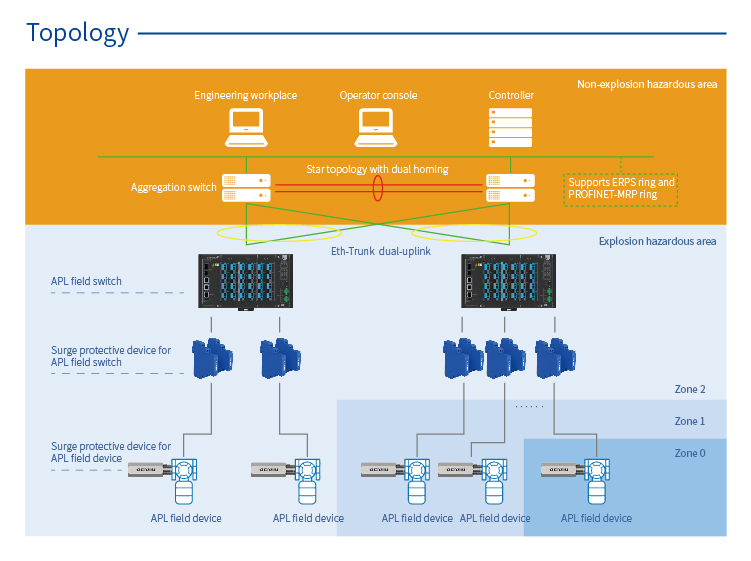

Ethernet‑APL Switch GSNX‑801EX
GSNX-801EX, IECEx认证

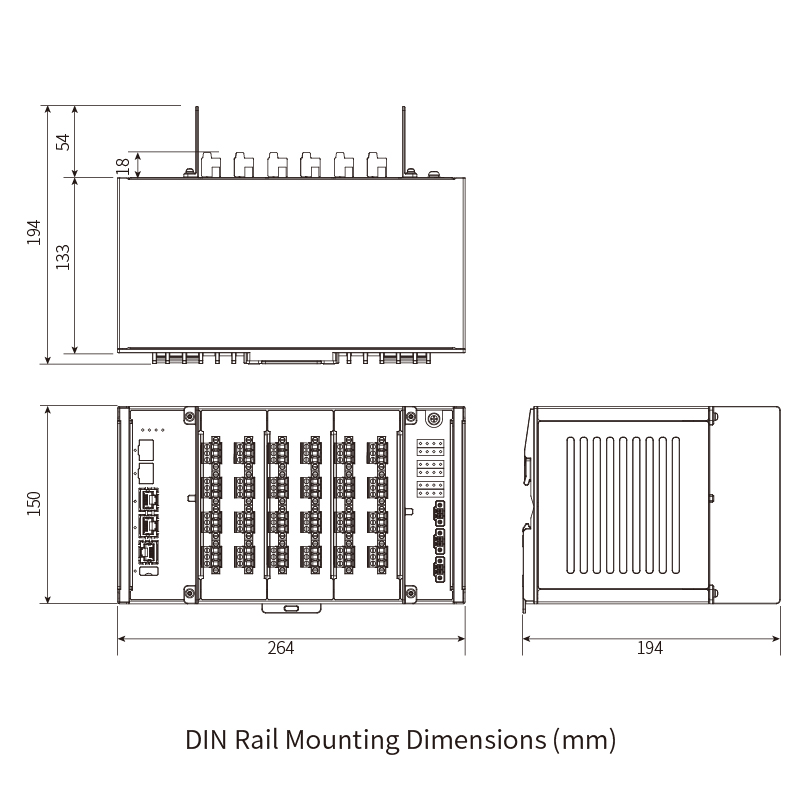

| Dimensions(W × D × H)[mm] | Basic Dimensions(Depth excludes protruding front‑rear panel components):264mm133mm150mm |
| Housing Material | Metal |
| Mass[kg] | 5.25 kg (without terminals) 5.50 kg (with terminals) |

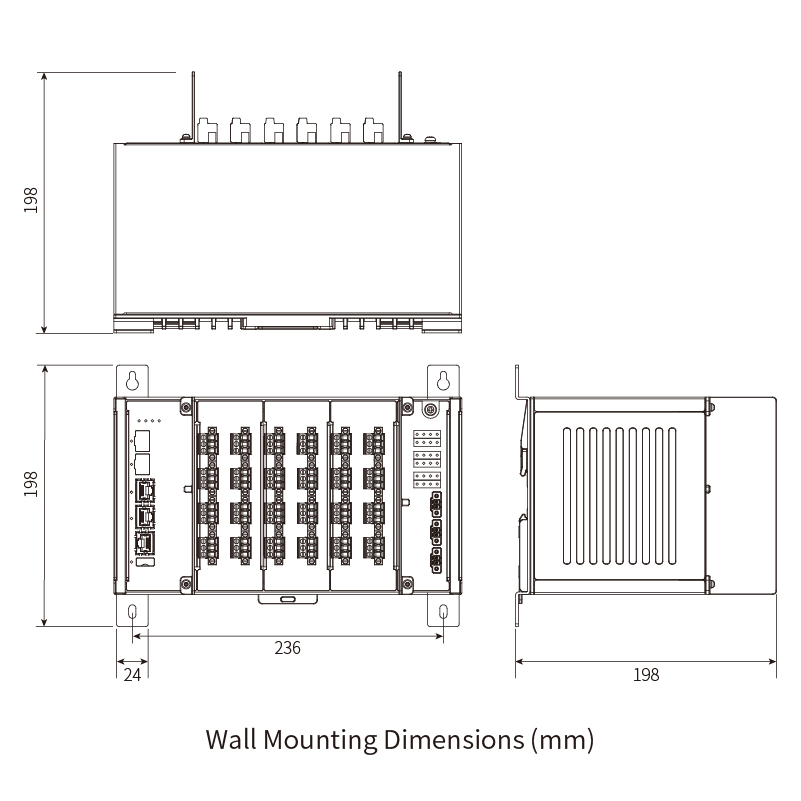

| Mounting | DIN Rail Mounting Wall Mounting(with wall‑mounting brackets) |
| Cooling | Convection‑cooled |
| Noise | Fan‑less design, Noise‑free |
| Ambient Temperature | -40°C ~ +70℃ -40°C ~ +65℃(SFP installed) |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5%RH ~ 95%RH non‑condensing |
| Shock Resistance | 15g, 11ms |
| Vibration Resistance | 1g, 10~150Hz |
| Pollution Degree | 2 |
| Corrosion Resistance | Conformal Coating, according to level G3 |
| Degree of Protection | IP20 |
| Supply Type | External DC |
| Rated Voltage[V] | 24V DC or 48V DC |
| Maximum Working Voltage Range[V] | 20‑60V DC |
| Maximum Working Current Range[A] | 2.3‑0.83A |
| Power Consumption | 50W(Max, SFP installed) |
| Power Dissipation | 36.5W(Max, SFP installed) |
| Redundancy | dual supply input, PWR1+PWR2 |
| LED PWR1/2 | Green, steady on: Power on |
| LED SYS | Green, fast flashing: System booting in progress Green, steady on: System initialization phase(duration ≤ 30 s) Green, slow flashing: System operating normally Red, steady on: System malfunction or temperature alarm |
| C1‑C3(S1‑S8) | Green, steady on: Communication link up Green, flashing: Data transmitting/receiving over the link |
| LED STAT | Green, steady on: DO closed(normally closed NC) |
| Fault Signal DO Output | Relay dry contact output, contact rating ≤30VDC，≤10mA，normally closed NC |
| Interface Type | Single Pair Ethernet SPE,APL,Spur,1Vpp |
| Number of Ports | 24 |
| Port Classification | SPAA |
| Port Identification | C1(S1~S8), C2(S1~S8), C3(S1~S8) |
| Transfer Rate | 10MBit/s full‑duplex |
| Rated Voltage | 9.8V |
| Rated Current | 55.56mA |
| Rated Power | 0.54W |
| Cable Shield Grounding | capacitive grounded |
| Connection Type | screw terminals, pluggable |
| Conductor Cross Section | 14~22AWG（2.08~0.32mm²） Recommend 18AWG（0.81mm²） |
| Interface Type | Ethernet electrical interfaces，10/100/1000MBase‑T，RJ45 |
| Number of Ports | 2 |
| Port Identification | (GE)‑1, (GE)‑2 |

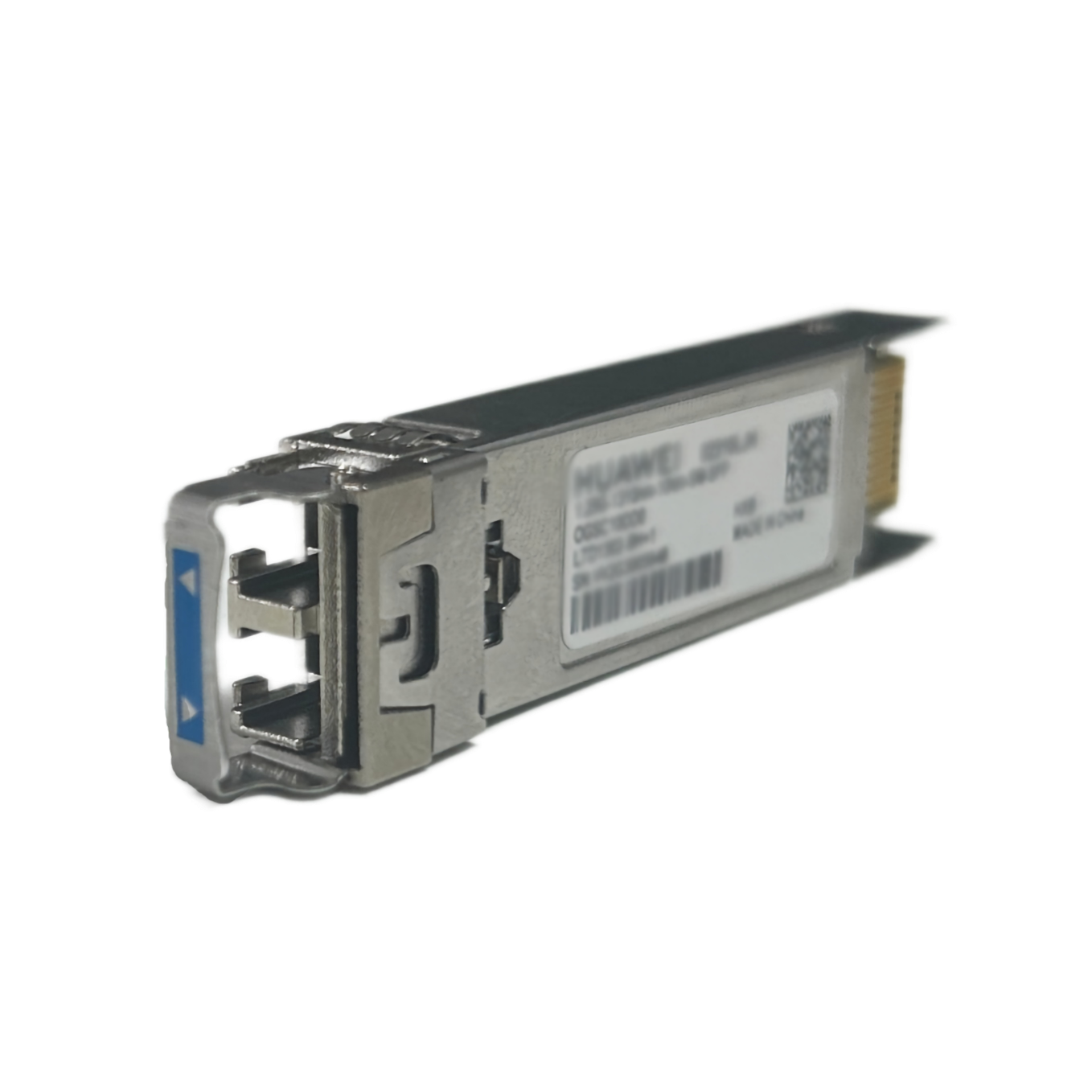

| Interface Type | Optic Transceivers，SFP+/SFP，10G/1G |
| Number of Ports | 2 |
| Port Identification | (10G/1G)‑1, (10G/1G)‑2 |
| Serial | 1×Console Port |
| USB | 1×USB 2.0(Device initialization) |
| Spur / Supply | 1500 V AC |
| Spur / Spur | 500V AC |
| 1000BASE‑T / All | 1500 V AC |
| DO / All | 1500 V AC |
| SFP / Spur | 1500V AC |
| Housing / Spur | 1500V AC |
| Housing / Supply | 2000 V DC |
| Maximum safe voltage Um | 60 V |
| Certifications | IECEx, CCC, NEPSI |
| Ex marking | Ex ec [ia Ga] IIC T4 Gc；[Ex ia Ma] Ⅰ；[Ex ia Ga] ⅡC；[Ex ia Da] ⅢC |
| Downlink Interface type | 2‑WISE power source |
| Max.output voltage Uo | 17.5V |
| Max.output current Io | 380mA |
| Max.output power Po | 1.65W |
| Max. external capacitance Co | 0.339uF (IIC)；1.97uF (IIB/IIIC)；11.2uF (I) |
| Max. external inductance Lo | 0.245mH (IIC)；0.983mH (IIB/IIIC)；3.23mH (I) |
| Certificates | IECEx、CCC、NEPSI、CE |
| Explosion Protection | IEC 60079‑0，IEC 60079‑7，IEC 60079‑11，IEC TS 60079‑47 GB/T 3836.1，GB/T 3836.3，GB/T 3836.4 |
| EMC | IEC 61326‑1 |
| Safety requirements | IEC 61010‑1 |
| Vibration & Shock | IEC 60068‑2‑27 ，IEC 60068‑2‑6 |
| Conformance Test | IEEE Std 802.3cg，IEC 634444 |
