TC,Isolated Barrier(1 channel)

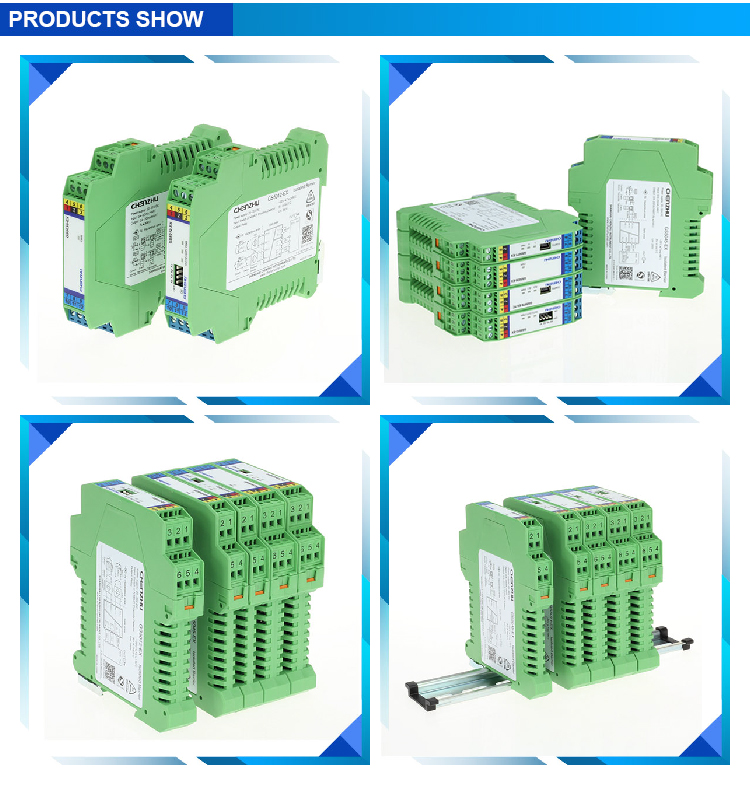

GS5072-EX  TC,Isolated Barrier(1 channel)

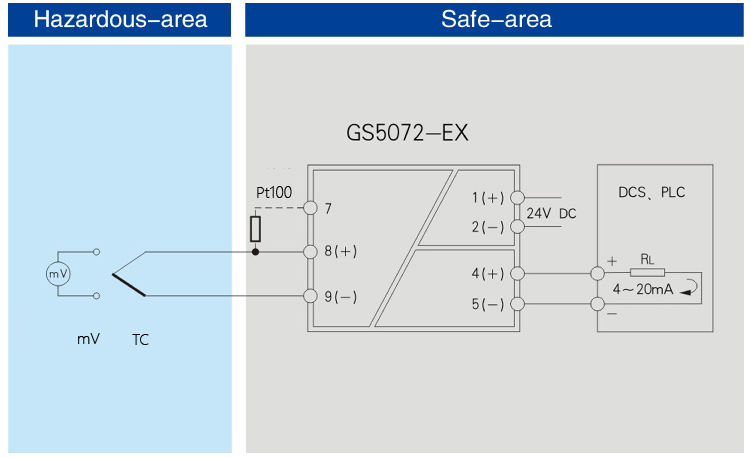

TC/mV input isolated barriers, convert TC/mV signals in hazardous area into current or voltage signals and output to safe area. It integrates CJC function in terminal and can be configured by computer. The product needs an independent power supply and galvanic isolation among power supply, input and output.
Number of channels:
1input/1output
Input signal:
Thermocouple T
Thermocouple E
Thermocouple J
Thermocouple K
Thermocouple N
Thermocouple R
Thermocouple S
Thermocouple B
Output signal:
4~20mA
0~20mA
0~5V
1~5V
Power Supply Mode :
24VDC
Power Conntecion Mode:
Terminal Power Supply
GS5072-EX
产品详情
产品参数
下载
click to consult
加入对比
加入询价单

TC,Isolated Barrier(1 channel)

TC,Isolated Barrier(1 channel)


Product Name  GS5072  Isolated Barrier
Number of channels  1 input/1 output
Supply voltage(Ue)  20~35V DC
Input signal  T;E;J;K;N;R;S;B;mV
Output signal  0~20mA;4~20mA;0~5V;1~5V
Ex-marking  [Ex ia Ga]IIC
Field apparatus  TC;mV


TC,Isolated Barrier(1 channel)

TC,Isolated Barrier(1 channel)

TC,Isolated Barrier(1 channel)


TC,Isolated Barrier(1 channel)


General
Input data
Output data
Power supply
Dimensions
Housing
Product approvals
Standard/Specification
Safe data(EX)
EMC data
Operating conditions
Connection data
Installation
Others
产品参数
General
Number of channels 1input/1output
Dielectric strength Non-intrinsically safe part and intrinsically safe part≥2500VAC,power supply part and non-intrinsically safe part≥500VAC
Temperature drift 0.01%F.S./℃
Response time Reach 90% of final value in 1s
Insulation resistance Non-intrinsically safe part and intrinsically safe part≥100MΩ,power supply part and non-intrinsically safe part≥100MΩ
Electromagnetic compatibility According to IEC 61326-1(GB/T 18268)
EX marking [Ex ia Ga]ⅡC [Ex iaD]
Weight Approx 100g
Field apparatus TC;mV
Suitable location zone 0;zone 1;zone 2;IIA;IIB;IIC;T4~T6
Input data

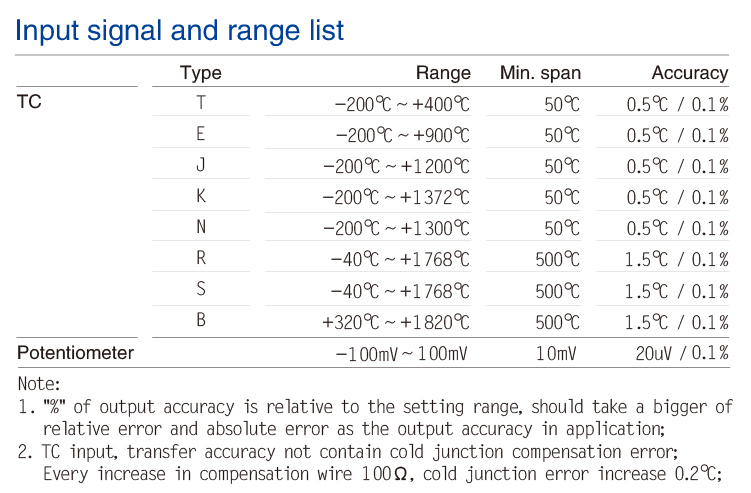

Input signal T;E;J;K;N;R;S;B;mV
Output data
Output signal 0~20mA;4~20mA;0~5V;1~5V
Current output load resistance RL≤300Ω
Voltage output load resistance RL≥20kΩ
Alarm indication Lower than range, LED L falshing, output current ≈3.8mA;Higher than range, LED H falshing, output current ≈20.8mA;Breakage, LED L and H falshing at the same time, output current ≈20.8mA
Power supply
Supply voltage(Ue) 20~35V DC
Power protection Reverse protection of power supply
Current consumption ≤35mA (at 24Vdc supply,20mA output)
Power supply mode Independent power supply
Power connecting mode Terminal
Dimensions

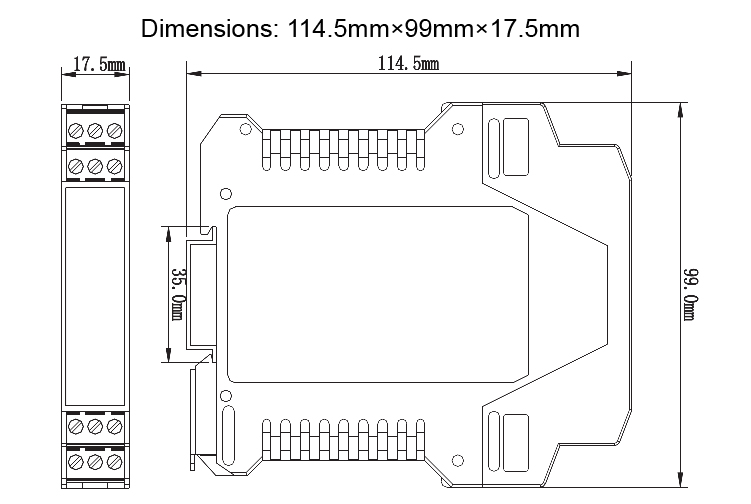

Depth 114.5mm
Height 99.0mm
Width 17.5mm
Housing
Material PA
Degree of protection IP20
Flammability rating UL94/V0
Colour green
Product approvals
Approvals NEPSI
Standard/Specification
NEPSI [Ex ia Ga] IIC Comply with standard: GB 3836.1、GB 3836.4、GB 3836.20 [Ex iaD] Comply with standard: GB 12476.1、GB 12476.4
Safe data(EX)
Max. r.m.s. a.c. or d.c. voltage Um 250V
Max.output voltage Uo 8.5V(7,8,9)
Max.output current Io 20mA(7,8,9)
Max.output power Po 43mW(7,8,9)
IIC Max. external inductance Lo 3.6mH(7,8,9)
IIC Max. external capacitance Co 6.5μF(7,8,9)
IIB Max. external inductance Lo 10.8mH(7,8,9)
IIB Max. external capacitance Co 60μF(7,8,9)
IIA Max. external inductance Lo 28.8mH(7,8,9)
IIA Max. external capacitance Co 1000μF(7,8,9)
EMC data
Electrical fast transient/burst immunity According to:IEC 61326-1;Class A
Surge immunity According to:IEC 61326-1;Class B
Radiated,radio-frequency,electromagnetic field immunity According to:IEC 61326-1
Electrostatic discharge immunity According to:IEC 61326-1;Class A
Immunity to conducted disturbances, induced by radio-frequency fields According to:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃~+80℃
Relative humidity 10%~90%
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section flexible range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Mounting type DIN35mm
Others
Cold junction compensation accuracy ±1℃(Compensation range:-20℃~+60℃)
