24V
3
5kA
Intrinsic safety
Screw connection
| Features | 24V, 10kA; Intrinsic Safety; Hot Pluggable; 3 wires |
| Protected Objects/Systems | AI; AO; DI; DO; RS-232 |

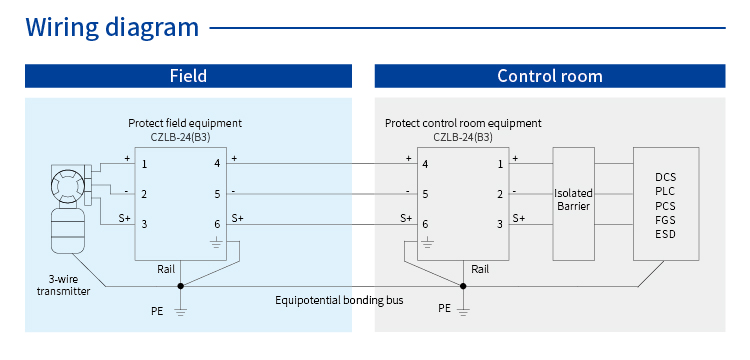

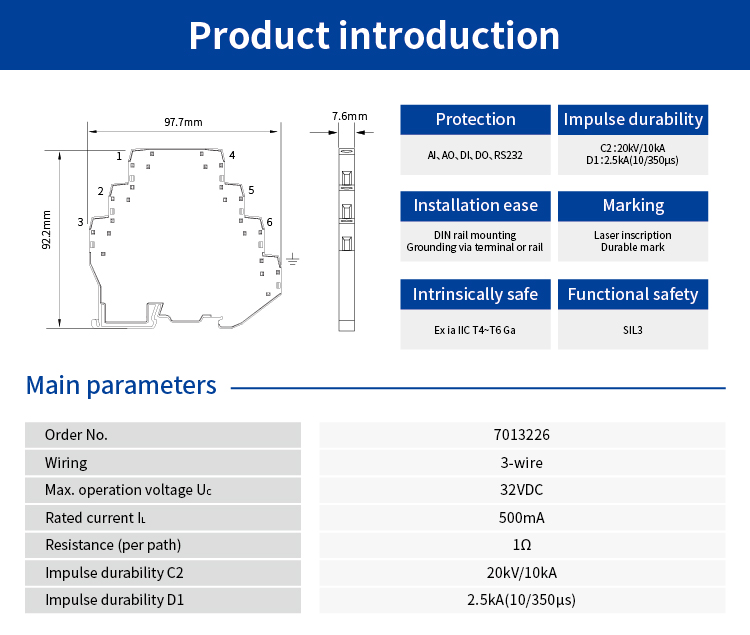

| Depth | 97.7mm |
| Width | 7.6mm |
| Height | 92.4mm |
| Colors | Gray |
| Flame Retardant Grade | V0 |
| Protection Level | IP20 |
| Material | PA66 |
| Brand | Dinkle |
| Response Time | 1ns |
| Resistance per Wire | 1ohm |
| Bandwidth | 10MHz（-0.5dB) |
| Leakage Current | ＜1uA |
| Maximun continuous operating voltage Uc | 32VDC |
| Nominal operating voltage Un | 24VDC |
| Nominal Operating Current IL | 500mA |
| Voltage Protection Level Up（1kV/us） | 40V（Line to Line）/600V（Line to Ground） |
| Voltage Protection Level Up（8/20us) | 60V（Line to Line）/600V（Line to Ground） |
| Impulse Current Iimp（10/350us) | 1.0kA |
| Maximum Discharge Current Imax（8/20us） | 10kA |
| Nominal Discharge Current In（8/20us) | 5kA |
| Total Discharge Current Itotal | 20kA |
| Maximum Internal Inductance Li | 0mH |
| Maximum Internal Capacitance Ci | 0uF |
| Maximum Input Power Pi | 1.0W |
| Maximum Input Current Ii | 250mA |
| Maximum Input Voltage Ui | 29V |
| Safety Integrity Level（SIL） | SIL3 |
| Safe Failure Fraction（SFF） | 0.9364 |
| λtotal | 33.15 |
| λDD | 0 |
| λDU | 7.37 |
| λSD | 0 |
| λSU | 25.78 |
| Certification | Lightning Protection Certification;Functional Safety Certification |
| Explosion-Proof Certification | N/A |
| Lightning Protection Certification | Shanghai Lightning Protection Products Test Center |
| Functional Safety | SIL3 |
| Names | GB/T 18802.21 / IEC 61643-21; IEC 61508 |
| Maximum Altitude | 2000m |
| Applicable Location | Cabinet |
| Permissible Humidity (Operation) | 5%—95% |
| Ambient Temperature (Storage) | ﹣40—85℃ |
| Ambient Temperature (Operation) | ﹣40—70℃ |
| Maximum Tightening Torque | 0.5Nm |
| Connection Method | Terminal Connection |
| Stripping Length | 8mm |
| Conductor Cross Section Flexible | 1.0—2.5mm2 |
| Conductor Cross Section Solid | 1.0—4mm2 |
| Mounting Method | 35mm Lead Rail |
| Interface | Screw |
| Mounting Position | Cabinet |
