1input/2outputs
Relay
Dry contact/proximity switch
24VDC
Terminal Power Supply
| Product Name | GS8515-EX Isolated Barrier |
| Number of channels | 1input/2outputs |
| Supply voltage(Ue) | 20~35V DC |

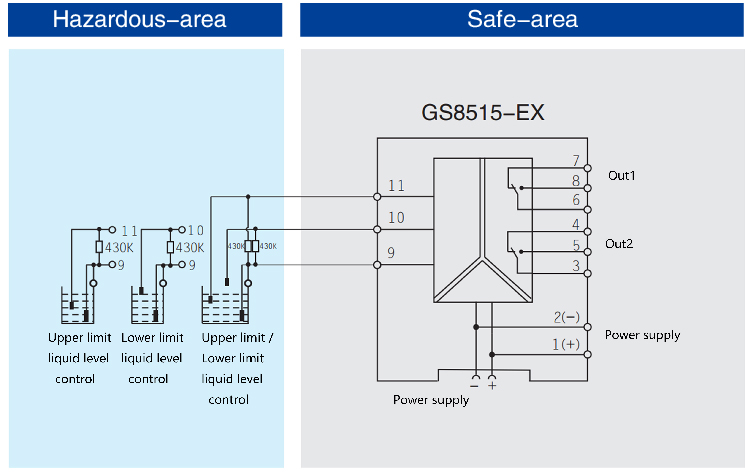

| Input signal | Control type: ON/OFF control(9,10) Upper limit/lower limit c ontrol(9,10,11) Sensitivity: 1k~150kΩ(adjustable via the front cover potentiometer) |
| Output signal | Relay |
| Weight | Approx 150g |
| Feild apparatus | Conductive liquid level detection devices |
CHENZHU EPLAN GS8515-EX.edz
